outPorts

The definition of the output ports of the component. It's an array of objects.

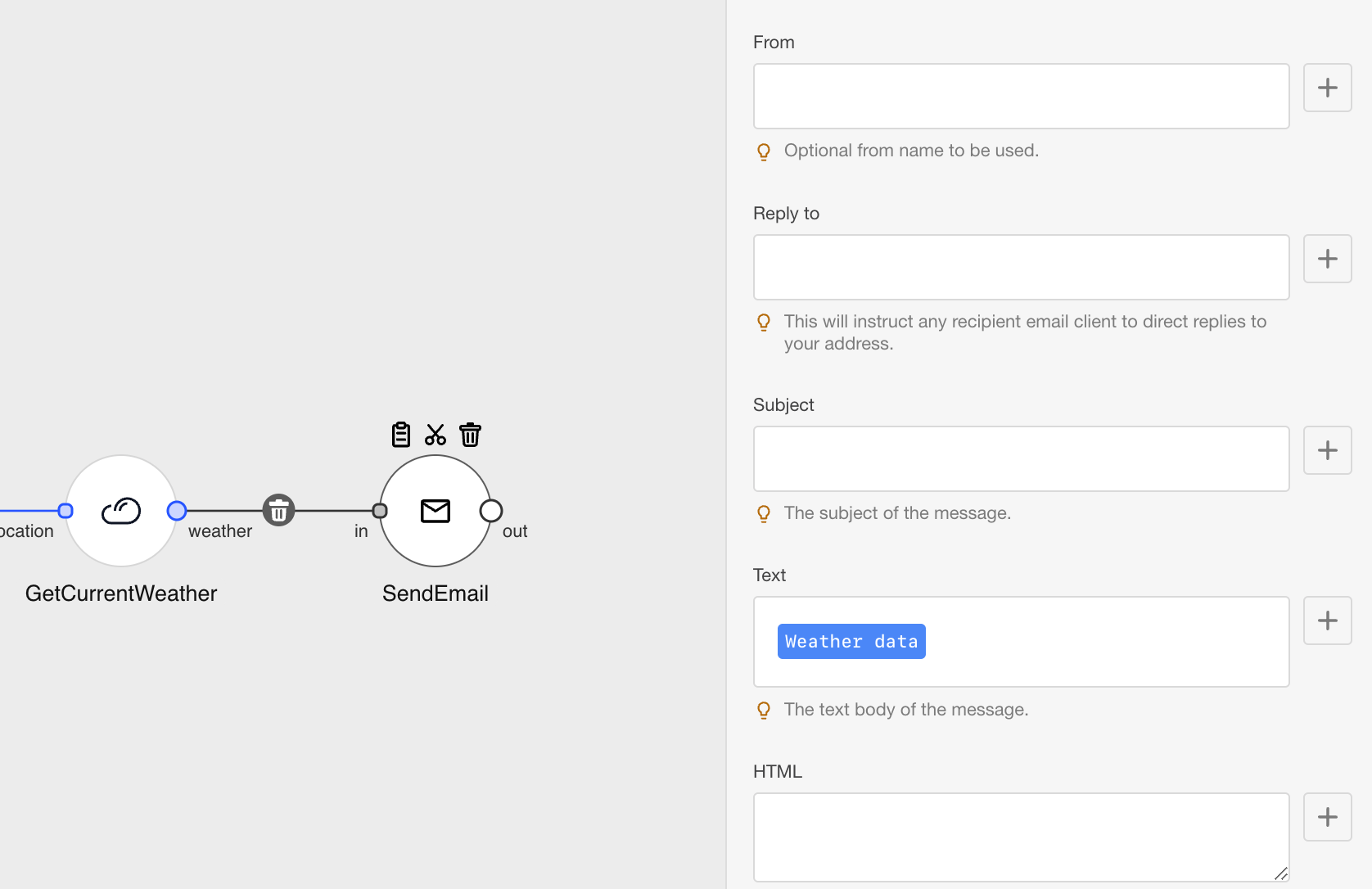

Components can have zero or more output ports. Each output port has a name and optionally an array options that defines the structure of the message that this output port emits. Without the options object, the user won't be able to see the possible variables they can use in the other connected components. For example, a component connected to the weather output port of our GetCurrentWeather component can see the following variables in the variables picker:

Variables Picker

An example of an outPorts definition can look like this:

{
    "outPorts": [
        {
            "name": "weather",
            "options": [
                { "label": "Temperature", "value": "main.temp" },
                { "label": "Pressure", "value": "main.pressure" },
                { "label": "Humidity", "value": "main.humidity" },
                { "label": "Sunrise time (unix, UTC)", "value": "sys.sunrise" },
                { "label": "Sunset time (unix, UTC)", "value": "sys.sunset" },
                { "label": "City name", "value": "name" },
                { "label": "Weather description", "value": "weather[0].description" },
                { "label": "Weather icon code", "value": "weather[0].icon" },
                { "label": "Weather icon URL", "value": "weather[0].iconUrl" }
            ]
        }
    ]
}

JSON Schema

We support full schema definition for each option, so you can specify the structure of the data that is coming out from your component. You can add a schema property to each option, which contains a JSON Schema definition. For example:

{
    "outPorts": [
        {
            "name": "weather",
            "options": [
                { "label": "Temperature", "value": "main.temp" },
                { "label": "Pressure", "value": "main.pressure" },
                { "label": "Humidity", "value": "main.humidity" },
                { "label": "Sunrise time (unix, UTC)", "value": "sys.sunrise" },
                { "label": "Sunset time (unix, UTC)", "value": "sys.sunset" },
                { "label": "City name", "value": "name" },
                {
                    "label": "Weather data",
                    "value": "weather",
                    "schema": {
                        "type": "array",
                        "items": {
                            "type": "object",
                            "properties": {
                                "description": { "type": "string", "title": "Weather description" },
                                "icon": { "type": "string", "title": "Weather icon code" },
                                "iconUrl": { "type": "string", "title": "Weather icon URL" }
                            }
                        }
                    }
                }
            ]
        }
    ]
}

As you can see, compared to the first example, we replaced the last 3 options with a single one, which is actually an array of items with three properties. Each of these items has title which determines the label that will be visible in the UI. Note that the type of these inner properties could be an object or array, and have their own nested schemas.

If the option is defined as an array and you want to work with that array using modifiers:

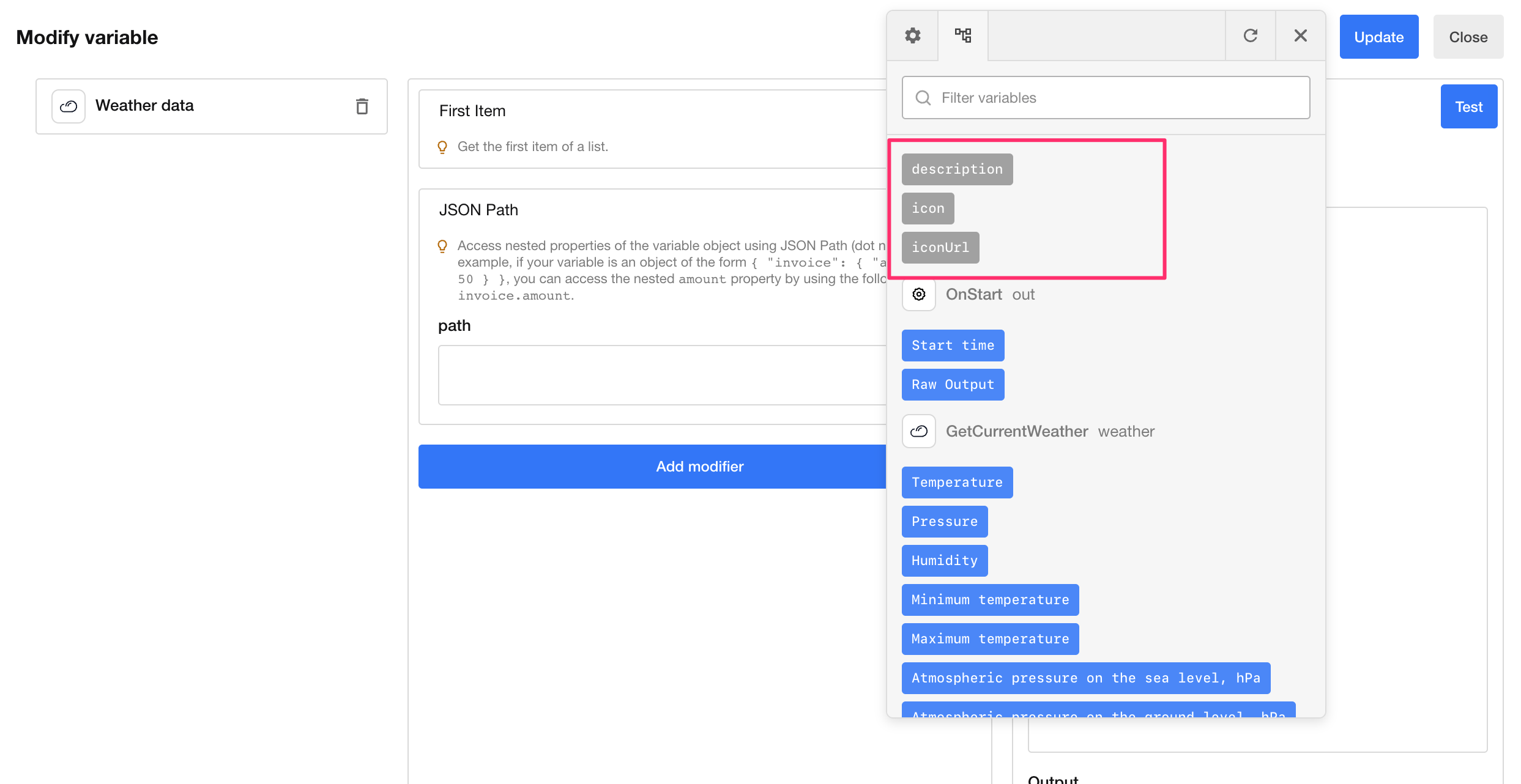

You will see the item properties among other variables.

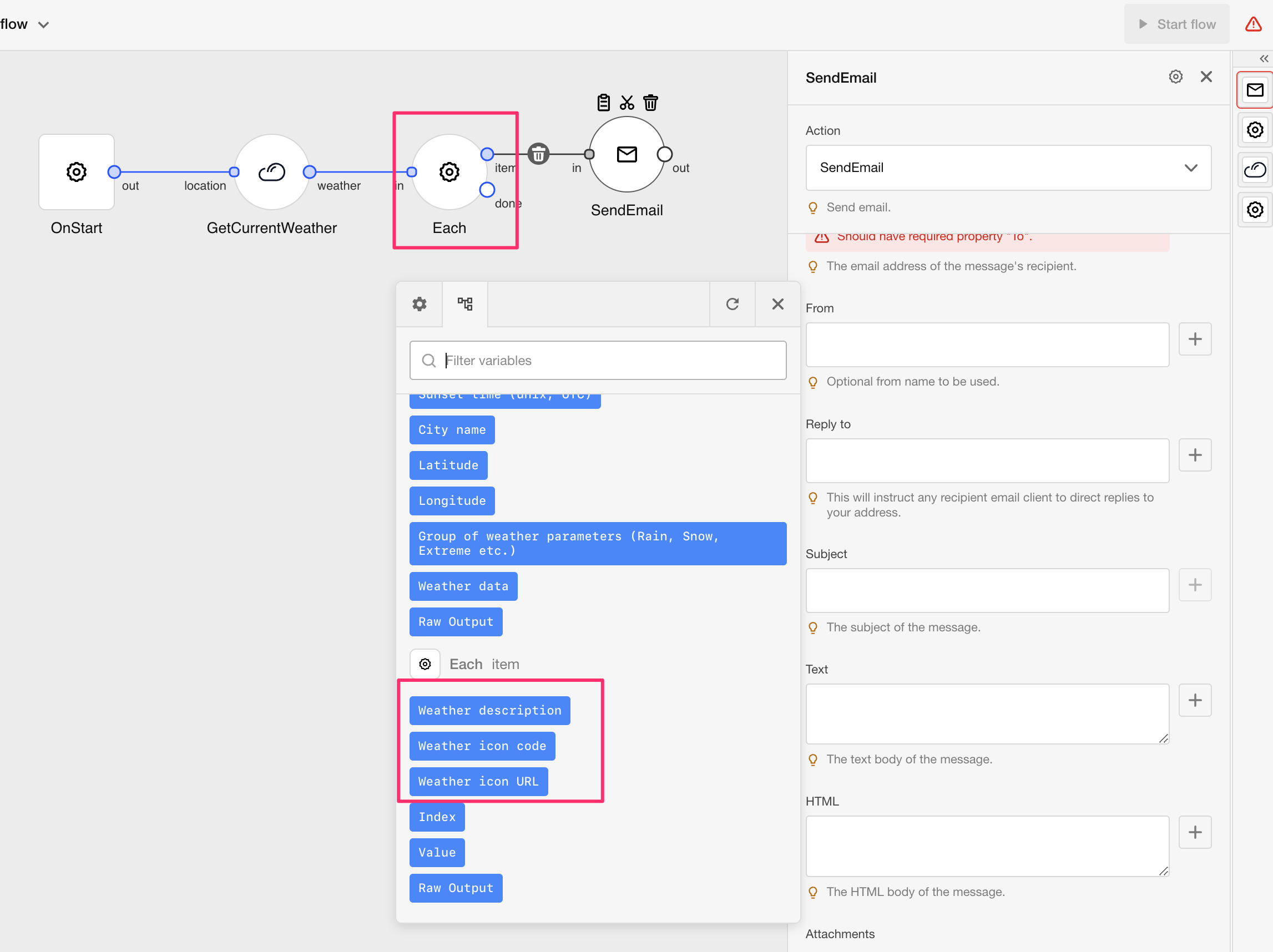

And if you use the Each connector, you will see the item properties in the Variables picker.

Alternatively, you can define a schema at the top level instead of using the options property. For example:

{
    "outPorts": [
        {
            "name": "weather",
            "schema": {
                "type": "object",
                "properties": {
                    { "title": "Temperature", "value": "main.temp" },
                    { "title": "Pressure", "value": "main.pressure" },
                    { "title": "Humidity", "value": "main.humidity" },
                    { "title": "Sunrise time (unix, UTC)", "value": "sys.sunrise" },
                    { "title": "Sunset time (unix, UTC)", "value": "sys.sunset" },
                    { "title": "City name", "value": "name" },
                    {
                        "label": "Weather data",
                        "value": "weather",
                        "schema": {
                            "type": "array",
                            "items": {
                                "type": "object",
                                "properties": {
                                    "description": { "type": "string", "title": "Weather description" },
                                    "icon": { "type": "string", "title": "Weather icon code" },
                                    "iconUrl": { "type": "string", "title": "Weather icon URL" }
                                }
                            }
                        }
                    }
                }
            }
        }
    ]
}

When you define the structure of the data coming out from your component, the users of your component will have an easier time working with it, as they will be able to do things like selecting nested properties directly, selecting properties on iteration modifiers, and getting properties paths in modifiers. You can find more details about this in this section.

outPort.source

The definition is similar to the source source of properties. When used for the output port definition, it allows defining the output port schema dynamically.

There is one difference though. When defined in the output port, the source definition can reference both component properties and input fields, while the properties source definition can only hold references to other properties' values.

An example is a Google Spreadsheet component UpdatedRow. The output port options of this component consist of the column names in the spreadsheet. But that is specific to the selected Spreadsheet/Worksheet combination. Therefore it has to be defined dynamically.

Dynamic output port options.

Here is an example of the UpdatedRow output port definition.

{
    "outPorts": [
        {
            "name": "out",
            "source": {
                // We will call another component to construct the output port
                // options, in this case, the GetRows component
                "url": "/component/appmixer/google/spreadsheets/GetRows?outPort=out",
                // Every Appmixer component can have 'properties' and input ports,
                // the 'data' sections is used to create the input data object
                // for the component
                "data": {
                    // in this particular case, the GetRows component has an
                    // optional property called 'generateOutputPortOptions', we
                    // will pass that property with the value 'true'. The GetRows
                    // component will use this property to change its return value
                    // and instead of returning rows from Worksheet, it will
                    // return the 'options' array.
                    "properties": {
                        "generateOutputPortOptions": true
                    },
                    // the GetRows component expects the Spreadsheet ID and
                    // Worksheet ID as part of the message at its input port
                    // called 'in'. The UpdatedRow component is a trigger, it
                    // does not have an input port, but it has the same options like
                    // 'allAtOnce', 'withHeaders', ... and since it does not have
                    // an input port, it has these options defined in the
                    // 'properties' section. The next 'messages' section is used
                    // to construct an input port object for the GetRows component.
                    // It copies the user defined properties from the UpdatedRow.
                    // Appmixer will replace these with the actual values before
                    // calling the GetRows component.
                    "messages": {
                        "in/sheetId": "properties/sheetId",
                        "in/worksheetId": "properties/worksheetId",
                        "in/allAtOnce": "properties/allAtOnce",
                        "in/withHeaders": "properties/withHeaders",
                        "in/rowFormat": "properties/rowFormat"
                    }
                }
            }
        }
    ]
}

outPort.maxConnections

Set the maximum number of outgoing links that can exist from the output port. The maximum number of connections is infinite by default but in some applications, it might be desirable to set a limit on this, usually 1. The Appmixer Designer UI will not allow the user to connect more than maxConnections links from the output port.
