# Salesforce

## OAuth app properties

| Property                | Value                                                                                                                                                                                                                                                                                       |
| ----------------------- | ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| **Multi-tenant**        | **Conditional.** A *Local* External Client App works only for users of the org where it was created. To serve other orgs, put the app into a second-generation managed package and install it in each customer org, or use an existing Connected App, which users of any org can authorize. |
| **Vendor review**       | **None.** An AppExchange security review applies only if you list a package on AppExchange.                                                                                                                                                                                                 |
| **Review time**         | Not applicable.                                                                                                                                                                                                                                                                             |
| **Users before review** | No limit. The app's **Permitted Users** policy decides who in the org may authorize it.                                                                                                                                                                                                     |
| **App owner**           | Any Salesforce org, for example a free Developer Edition org.                                                                                                                                                                                                                               |
| **Regions**             | One app. Production orgs sign in through `login.salesforce.com`; sandbox users need `baseUrl` set to `https://test.salesforce.com` (see [Login URL](#login-url)).                                                                                                                           |
| **Client secret**       | No expiry documented.                                                                                                                                                                                                                                                                       |
| **Rate limits**         | Per customer org, shared by all integrations: a 24-hour allocation of API requests, for example 100,000 plus 1,000 per Salesforce license in Enterprise Edition, 15,000 in Developer Edition.                                                                                               |
| **Checked**             | 2026-11-13                                                                                                                                                                                                                                                                                  |

**Limitations**

* Since Spring '26 new apps are External Client Apps. A Local one cannot serve your customers' orgs; see **Multi-tenant**.
* If the app's **Refresh Token Policy** sets an expiry, every connected account stops working when it runs out. Use *Refresh token is valid until revoked*.
* Salesforce allows five approvals (refresh tokens) per user and app. Connecting the same Salesforce user a sixth time through the app revokes the oldest connection.
* A Local External Client App is not copied into a sandbox when the sandbox is created or refreshed.
* Professional Edition orgs need API access enabled; without it the components fail.

Sources: [External Client App basics (Trailhead)](https://trailhead.salesforce.com/content/learn/modules/external-client-app-basics/use-external-client-apps-when-connected-apps-wont-do), [API request limits and allocations](https://developer.salesforce.com/docs/platform/salesforce-app-limits-cheatsheet/guide/salesforce-app-limits-platform-api.html). What the rows mean: [OAuth app properties](https://docs.appmixer.com/connector-configuration/oauth-app-properties.md).

### Create a Salesforce application

To integrate Appmixer with Salesforce, you are going to need an app in your Salesforce org. You can either create a new one or use one that already exists.

Salesforce has two kinds of apps:

* **External Client App** – the current app type. Since Spring '26 the *New Connected App* button is disabled in all orgs, so every new app is an External Client App. External Client Apps always require PKCE (the **Require Proof Key for Code Exchange (PKCE)** setting is checked and cannot be changed).
* **Connected App** (legacy) – older apps you may already have. They keep working. Salesforce is progressively enforcing PKCE for them too.

{% hint style="info" %}
The Appmixer Salesforce connector uses PKCE from version **1.7.4**. With an older connector version, connecting an account through an External Client App fails with `error=invalid_request&error_description=missing required code challenge`. Upgrade the connector before following this guide.
{% endhint %}

#### Create an External Client App

Log in to Salesforce, open **Setup** and in the left menu look up **Platform Tools -> Apps -> External Client App Manager**. Click **New External Client App**.

Fill out the basic information:

* **External Client App Name** and **API Name** – for example *Appmixer*.
* **Contact Email** – your email.
* **Distribution State** – *Local*.

Expand the **API (Enable OAuth Settings)** section and tick **Enable OAuth**. Then fill out:

* **Callback URL** – `https://api.acme.com/auth/salesforce/callback`, replace *api.acme.com* with the domain of your Appmixer API and keep the suffix `/auth/salesforce/callback`.
* **Selected OAuth Scopes** – add at least:
  * *Manage user data via APIs (api)*
  * *Access the identity URL service (id, profile, email, address, phone)*
  * *Perform requests at any time (refresh\_token, offline\_access)*

In **Flow Enablement**, tick **Enable Authorization Code and Credentials Flow**.

In **Security**, tick **Require secret for Web Server Flow** and **Require secret for Refresh Token Flow**. Leave **Require Proof Key for Code Exchange (PKCE)** checked – the connector sends the PKCE parameters. **Refresh Token Rotation** may stay enabled as well; the connector stores the rotated token.

Click **Create**.

Next, open the **Policies** tab of the new app, click **Edit** and in the **OAuth Policies** section:

* tick **Enable OAuth Policies**,
* set **Permitted Users** to *All users may self-authorize* (or restrict it to a profile or permission set),
* set **Refresh Token Policy** to *Refresh token is valid until revoked*.

Save the policies.

#### Getting the client id and secret

Open the **Settings** tab of your External Client App, expand **OAuth Settings** and click **Consumer Key and Secret**. Salesforce may ask you for a verification code sent to your email. You should now see your client id (shown as **Consumer Key**) and secret (shown as **Consumer Secret**).

#### Legacy: Connected App

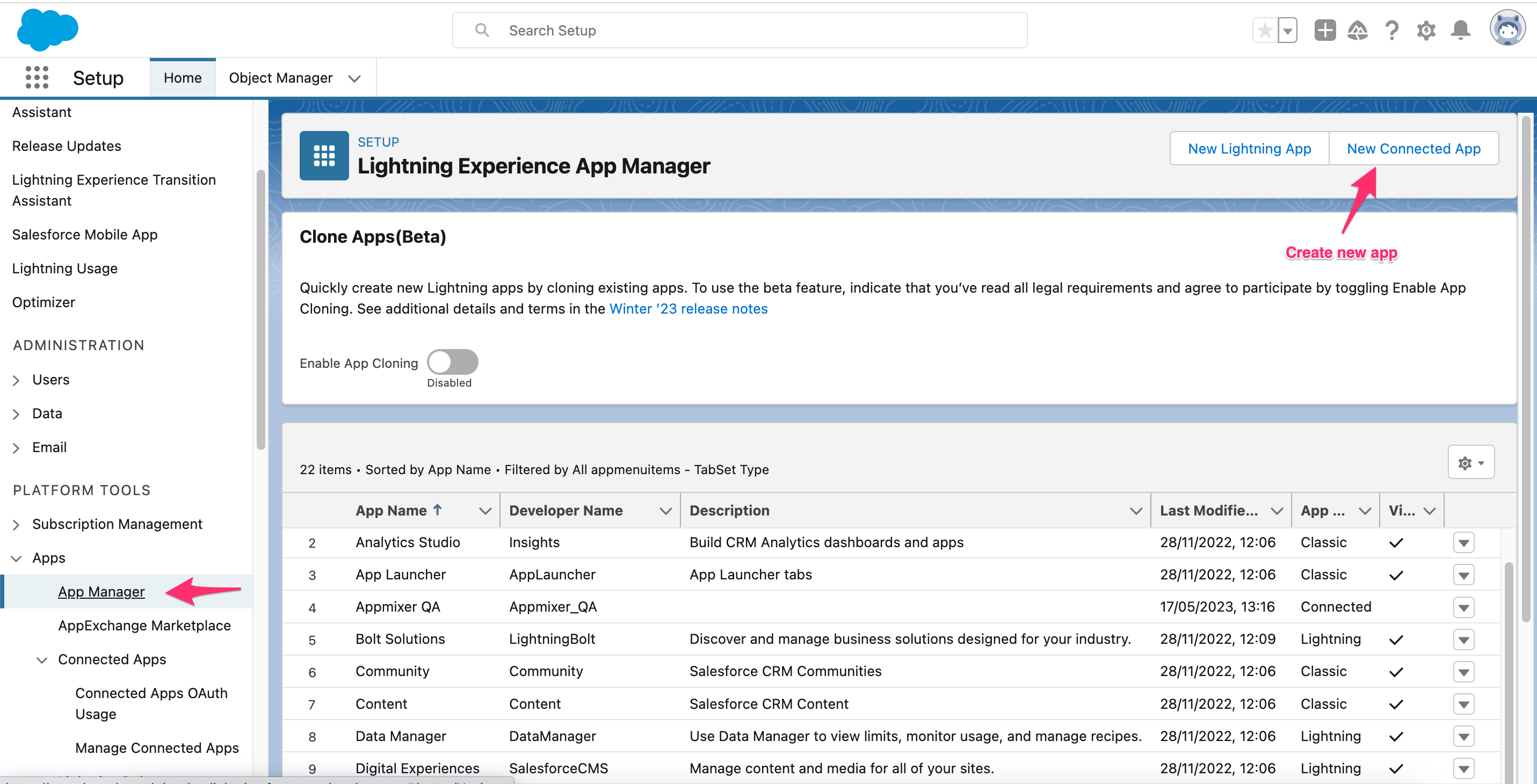

If your org still allows creating Connected Apps (Setup -> **External Client App Manager** -> **Settings** -> *Allow creation of connected apps*), or you already have one, the steps are similar. Look up **Platform Tools -> Apps -> App Manager** and click *New Connected App* on the top right side:

<figure><img src="https://802996127-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FIAGKHlIqVKJe9agnFr14%2Fuploads%2Fgit-blob-da4a925035cfb1c5afb50d4df30652f5815fc801%2Fsalesforce-1.png?alt=media" alt=""><figcaption><p>App manager</p></figcaption></figure>

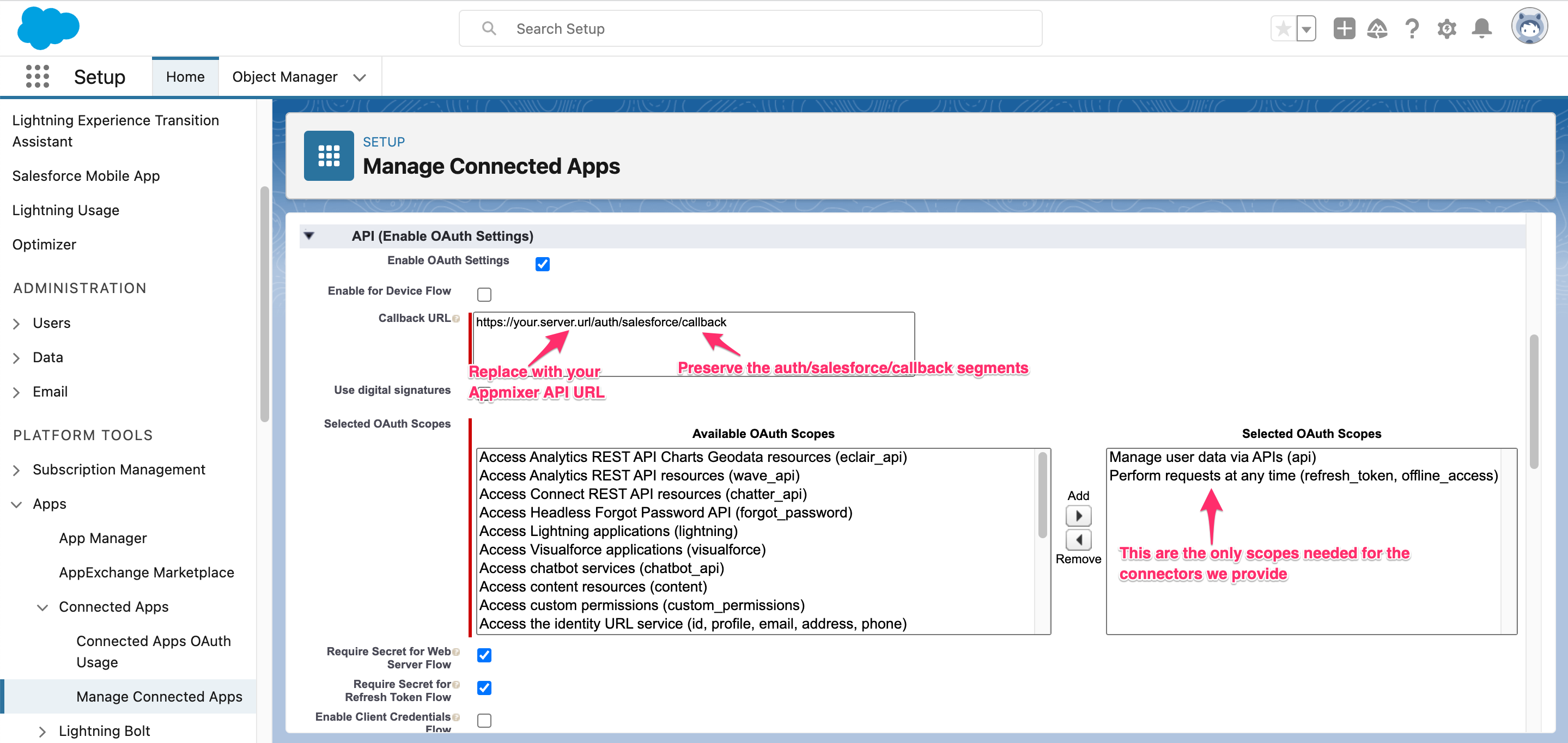

Look out for the **API (Enable OAuth Settings)** section. Tick the Enable OAuth Settings checkbox, and fill out the callback URL and scopes as shown in this screenshot:

<figure><img src="https://802996127-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FIAGKHlIqVKJe9agnFr14%2Fuploads%2Fgit-blob-1ad64e1694a7f1876c2ab4f7ce915713540a5130%2Fsalesforce-2.png?alt=media" alt=""><figcaption><p>Filling OAuth settings for your application</p></figcaption></figure>

<figure><img src="https://802996127-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FIAGKHlIqVKJe9agnFr14%2Fuploads%2Fgit-blob-f7bb2eb31c2aba939b3abbd5a8934c2968ba959c%2Fsalesforce-10.png?alt=media" alt=""><figcaption><p>Configure additional properties</p></figcaption></figure>

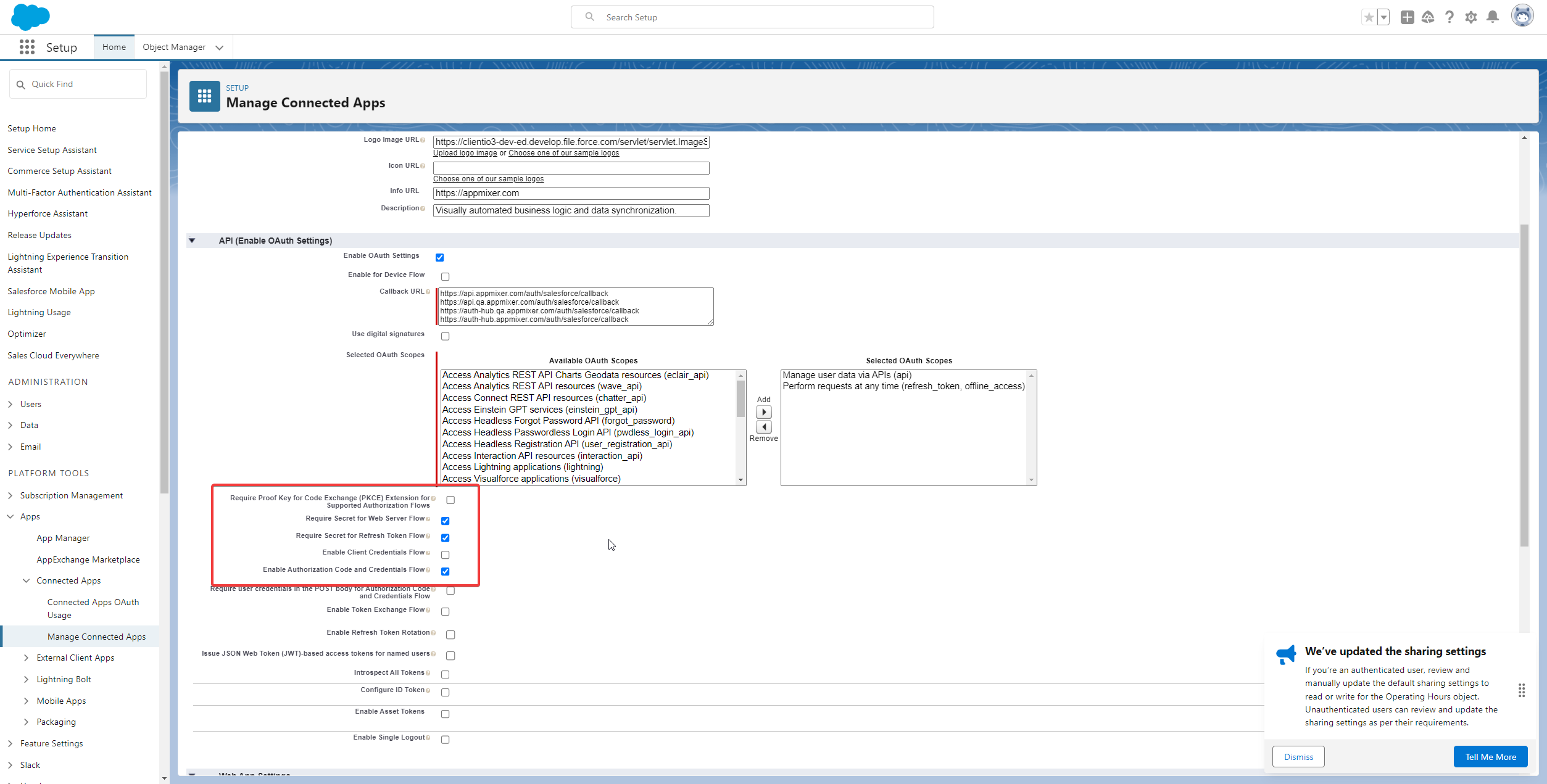

Check the **Require Secret for Web Server Flow**, **Require Secret for Refresh Token Flow** and **Enable Authorization Code and Credentials Flow** checkboxes. **Require Proof Key for Code Exchange (PKCE)** can be either checked or unchecked with connector 1.7.4 or newer.

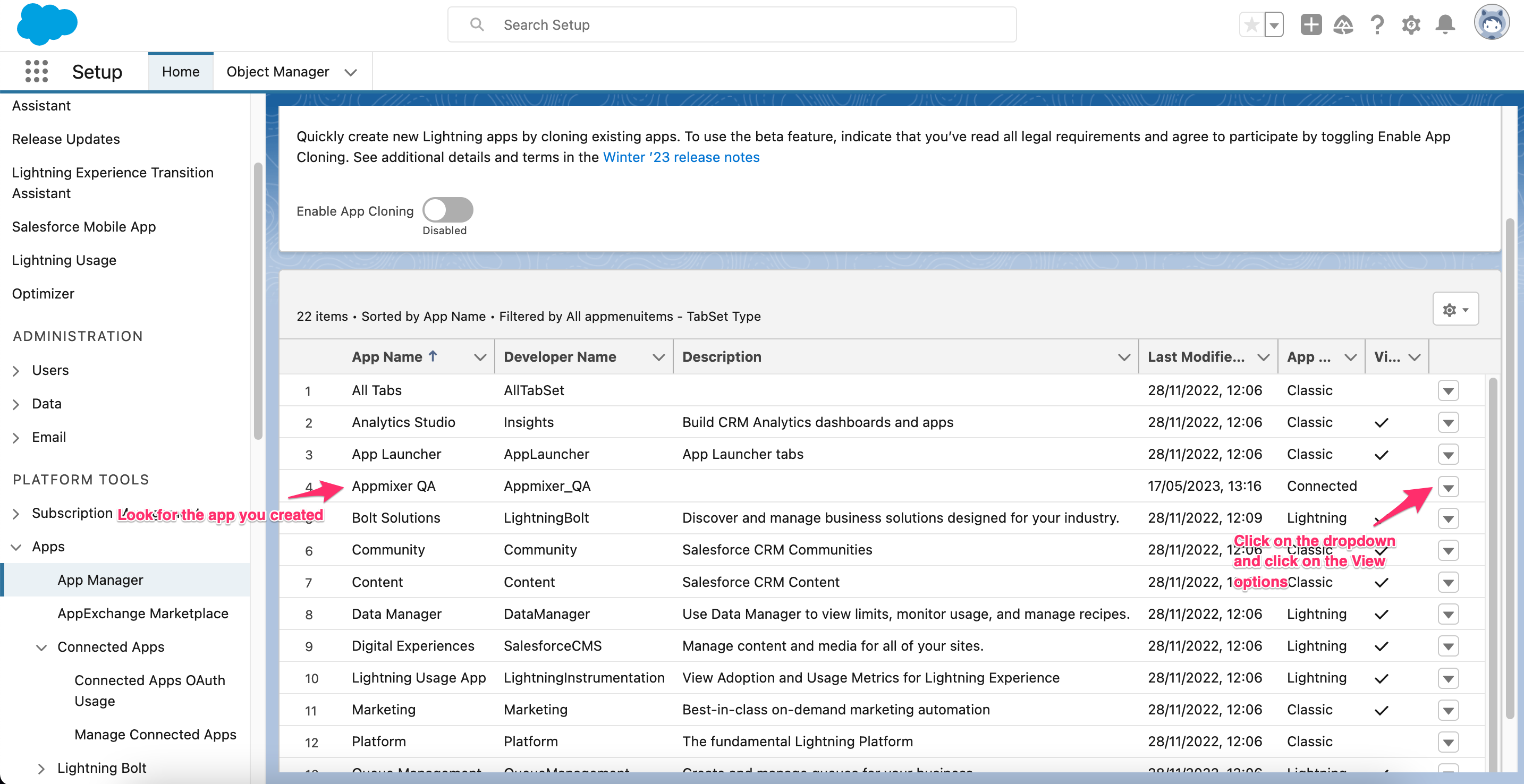

To get the client id and secret, go to the **App Manager**, search for your app in the list and on the dropdown in the right side click the **View** option.

<figure><img src="https://802996127-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FIAGKHlIqVKJe9agnFr14%2Fuploads%2Fgit-blob-f4670049cf65bf679d6ddaeb47157da65f7fdf31%2Fsalesforce-3.png?alt=media" alt=""><figcaption><p>Navigating to your app details</p></figcaption></figure>

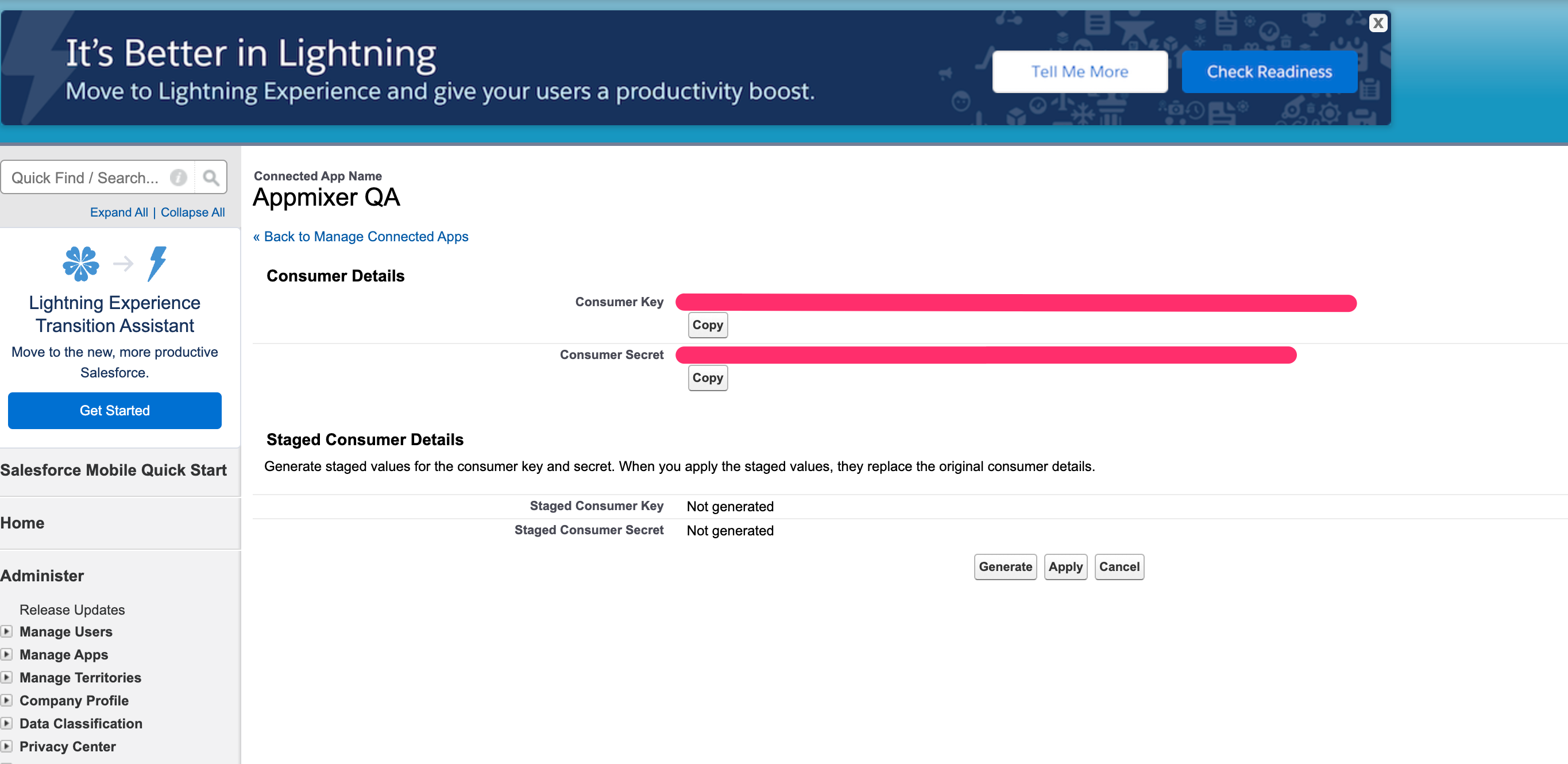

In the next screen, look out for **API (Enable OAuth Settings)** section and click on the **Manage Consumer Details** button. You should see now your client id (shown as Consumer Key) and secret (shown as Consumer Secret):

<figure><img src="https://802996127-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FIAGKHlIqVKJe9agnFr14%2Fuploads%2Fgit-blob-6f1678e79de48315d6982e07b868c5ba432703be%2Fsalesforce-4.png?alt=media" alt=""><figcaption><p>Salesforce client id (Consumer Key) and secret (Consumer Secret)</p></figcaption></figure>

### Troubleshooting

* `missing required code challenge` when connecting an account – the app requires PKCE but the connector is older than 1.7.4. Upgrade the connector.
* `invalid_client_id` or `redirect_uri_mismatch` – the Consumer Key or the callback URL in the app does not match the Appmixer configuration. The callback URL must end with `/auth/salesforce/callback`.
* The account stops working after some time – check the **Refresh Token Policy** of the app; *Refresh token is valid until revoked* is the recommended setting.

## Backoffice configuration

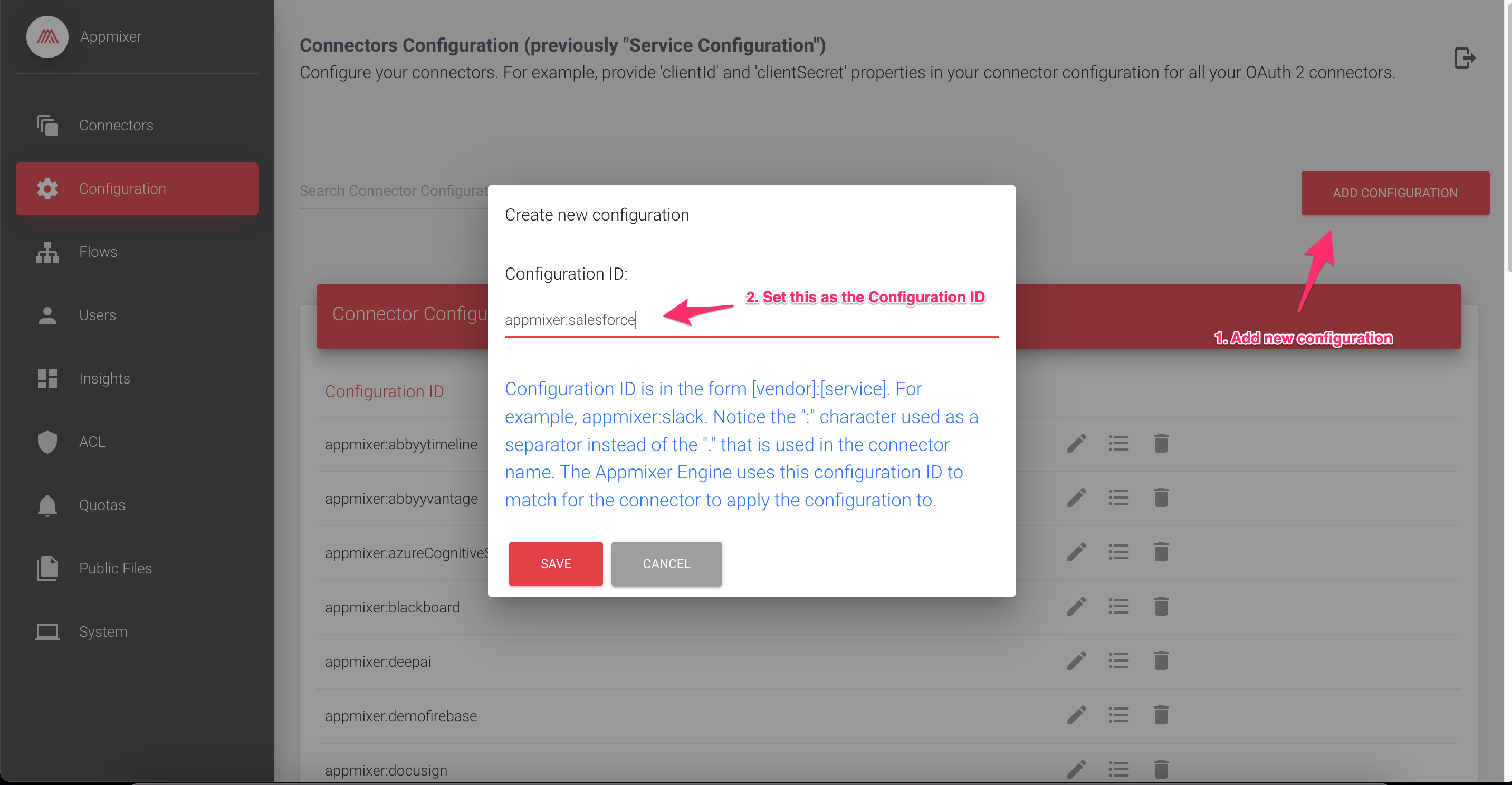

Configuration ID: `appmixer:salesforce` (Backoffice → Configuration; see [Connector Configuration](https://docs.appmixer.com/getting-started/services) for how a configuration is created and how its keys reach the connector).

<figure><img src="https://802996127-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FIAGKHlIqVKJe9agnFr14%2Fuploads%2Fgit-blob-4e02c0a828c590417dea20f5316765d84820baa8%2Fsalesforce-5.png?alt=media" alt=""><figcaption><p>Creating configuration for Salesforce in the Backoffice</p></figcaption></figure>

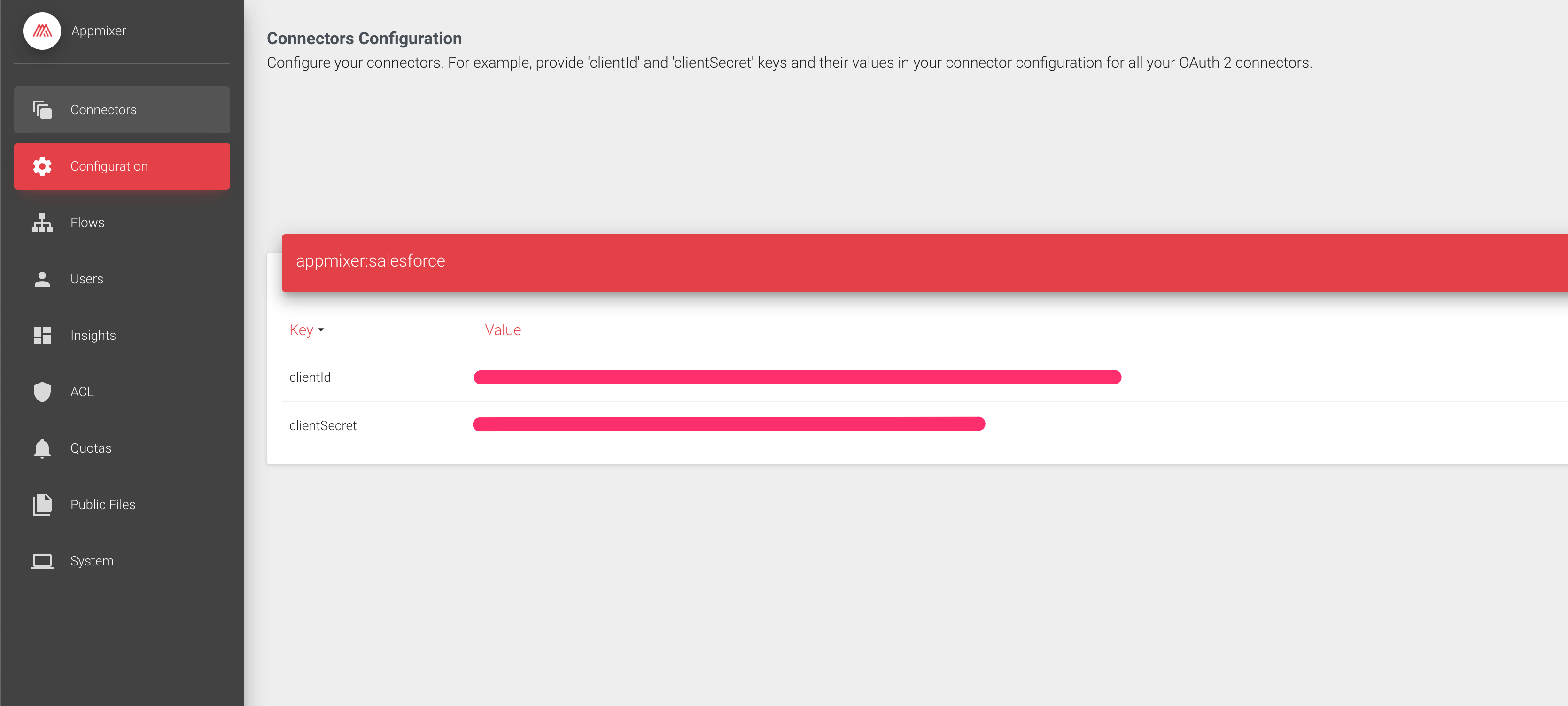

* `clientId` — The Consumer Key of the Salesforce app created above. Not needed when Salesforce is authenticated through the Appmixer Auth Hub.
* `clientSecret` — The Consumer Secret of the same app. Not needed with the Auth Hub.
* `promptType` — Optional. How Salesforce prompts the user when an account is connected. Default `login`. The values (from the Salesforce [OAuth docs](https://help.salesforce.com/s/articleView?id=sf.remoteaccess_oauth_web_server_flow.htm\&type=5)):
  * `login` — the authorization server must prompt the user for reauthentication, forcing the user to log in again.
  * `consent` — the authorization server must prompt the user for reapproval before returning information to the client.
  * `select_account` — if zero or one hint is available and the user is logged in, show the approval page without prompting for login; if zero or one hint is available and the user isn't logged in, prompt for login; if more than one hint is available, show the account chooser.

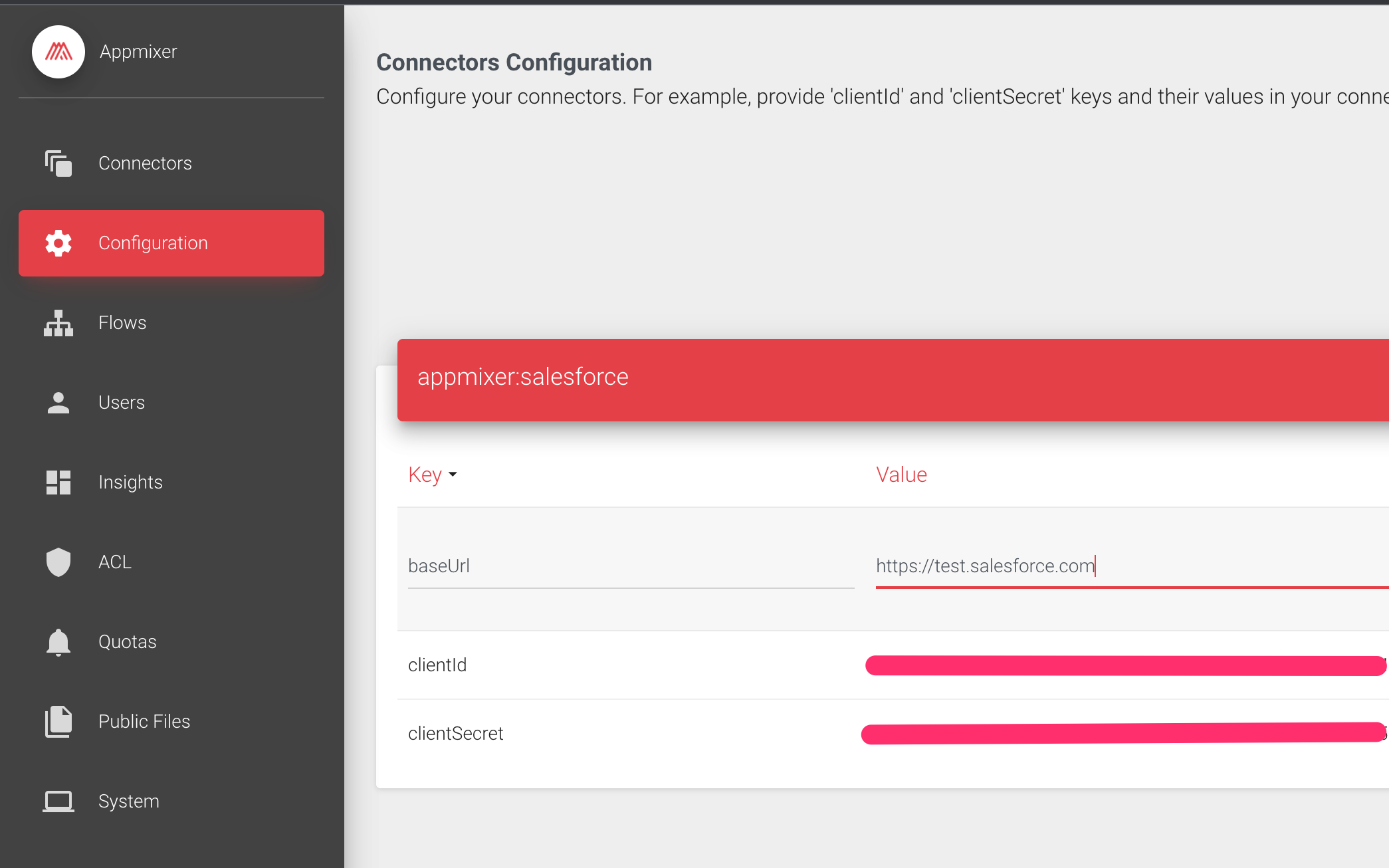

* `baseUrl` — Optional. The Salesforce login URL. Default `https://login.salesforce.com`.
* `apiVersion` — Optional. Salesforce REST API version used by the components, without the `v`, for example `58.0`. Default `58.0`.
* `listObjectsCacheTTL` — Optional. How long, in milliseconds, the list of Salesforce objects offered in the object dropdowns is cached. Default `20000` (20 seconds).
* `objectPropertiesCacheTTL` — Optional. How long, in milliseconds, the field list of an object is cached for the inspector. Default `300000` (5 minutes).
* `listAccountsCacheTTL` — Optional. How long, in milliseconds, the account list of **ListAccounts** is cached when it is used as a dropdown source. Default `300000` (5 minutes).
* `listCampaignsCacheTTL` — Optional. How long, in milliseconds, the campaign list of **ListCampaigns** is cached when it is used as a dropdown source. Default `300000` (5 minutes).
* `outputFilePrefix` — Optional. File name prefix of the CSV file that **FindContacts**, **FindContactsByField**, **ListCampaigns** and **Query** create when their output is set to a file. Default `salesforce-objects-export`.

<figure><img src="https://802996127-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FIAGKHlIqVKJe9agnFr14%2Fuploads%2Fgit-blob-967287ea9e7a64d20ca46c19759d79cc8b0d9658%2Fsalesforce-6.png?alt=media" alt=""><figcaption><p>Adding clientId and clientSecret to Appmixer</p></figcaption></figure>

![Setting promptType](https://802996127-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FIAGKHlIqVKJe9agnFr14%2Fuploads%2Fgit-blob-c63707a45fd947fc53e9394a6207d74b5201e88b%2Fsalesforce2.png?alt=media)

<figure><img src="https://802996127-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FIAGKHlIqVKJe9agnFr14%2Fuploads%2Fgit-blob-ec92f4d829573710dc04f45e9250009ca3286d38%2Fsalesforce-9.png?alt=media" alt=""><figcaption><p>Setting baseUrl</p></figcaption></figure>

The same keys can be set with the CLI (`-u` updates the existing configuration instead of creating it):

```bash
appmixer service-config set appmixer:salesforce -u -d '{
  "clientId": "<consumer key>",
  "clientSecret": "<consumer secret>"
}'
```


---
