# ServiceNow

### **Setup the App administrator account**

**App admin url**: <https://developer.servicenow.com/dev.do#!/home>

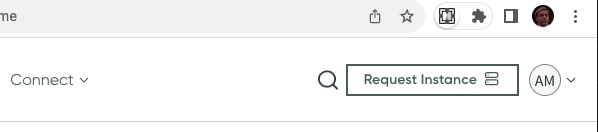

Once the app admin account is created and verified you need to create an instance.

<figure><img src="https://content.gitbook.com/content/cfhstxIZQWZNvWjV2O6F/blobs/Cp8AKtSvadeVfbGC2w7O/servicenow-1.png" alt=""><figcaption></figcaption></figure>

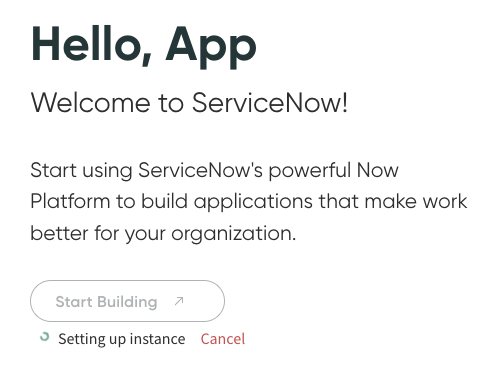

It will take a minute ~~or two~~ ~~or three~~ or five to complete.

<figure><img src="https://content.gitbook.com/content/cfhstxIZQWZNvWjV2O6F/blobs/MobbbuqAKrBeDiFnNDue/servicenow-2.png" alt=""><figcaption></figcaption></figure>

Now your developer instance is ready and accessible: <https://dev180380.service-now.com/>. Note that when creating a new account, your instance ID (`dev180380` in this case) will be different.

### Setup Webhooks

To configure webhooks in ServiceNow to receive notifications when a new record is created, follow these steps. This involves creating an Outbound REST Message, setting up a Business Rule to capture record creation, and configuring the webhook.

#### Create an Outbound REST Message:

* Navigate to **System Web Services > Outbound > REST Message**.
* Click on the **New** button to create a new REST Message.
* Fill in the fields such as:
  * Name: e.g., `AppmixerNotifications`.
  * Endpoint: `https://<YOUR_API_BASE>/plugins/appmixer/servicenow/events` for example `https://api.appmixer.com/plugins/appmixer/servicenow/events` ![Outbound REST](https://github.com/clientIO/appmixer-docs-gitbook/blob/v6.0/app-registration/assets/servicenow_2.png)
* Click **Submit** and then open the newly created REST Message.
* Click on the **HTTP Methods** tab and create a new HTTP Method.
* Fill in the details such as:
  * Name: e.g., `events`.
  * HTTP Method: POST.
  * Endpoint: Ensure this is filled with your webhook listener’s URL.
* Optionally, add default HTTP Request Headers (e.g., Content-Type) and customize the Request Body or Query Parameters if needed.
* Save the HTTP Method.

#### Create a Business Rule:

* Navigate to the table for which you want to capture new record creation. For example, if it’s the Incident table, go to **Incident > All**.
* Right-click on the form header and select **Configure > Business Rules**.
* Alternatively, you can navigate to **Activity Subscriptions -> Administration -> Business Rules**.

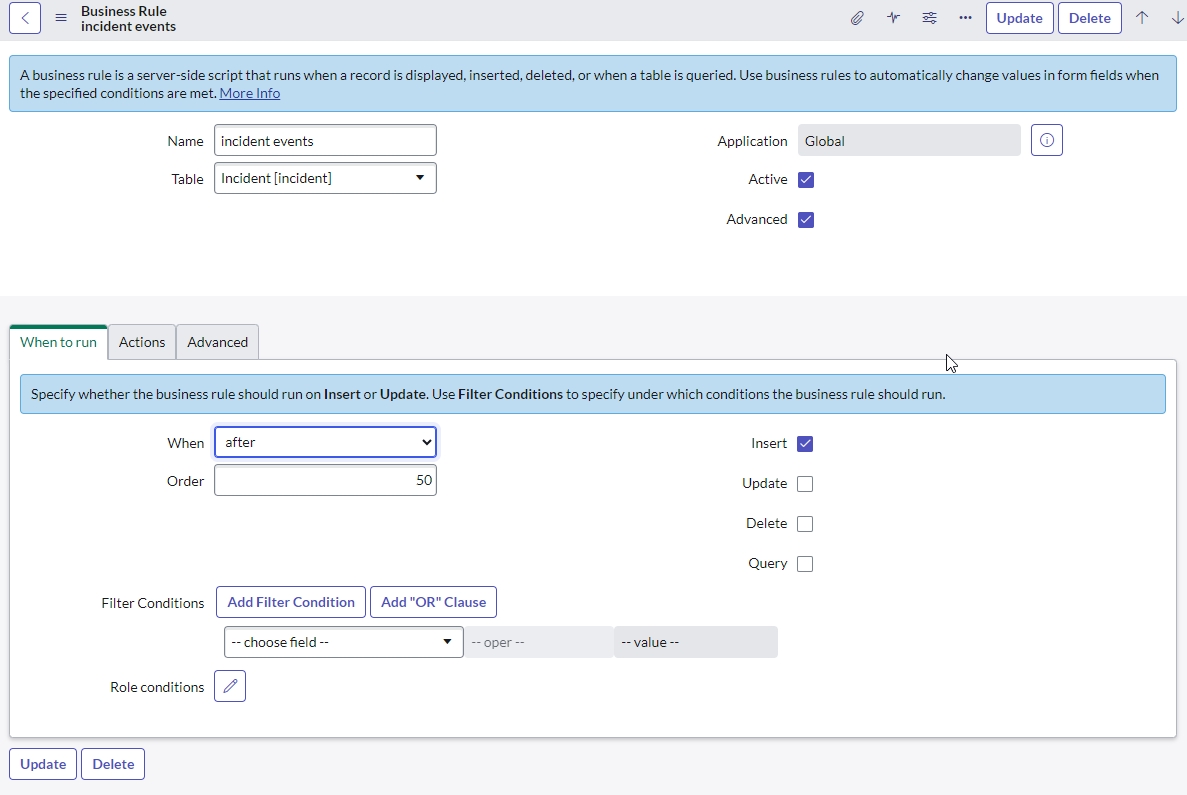

* Click on the **New** button to create a new Business Rule.

  * Set the fields as follows:
  * Name: e.g., `Incident Rules`.
  * Table: Select the appropriate table (e.g., `Incident`).
  * When: Insert.

  ![Business Rule](https://content.gitbook.com/content/cfhstxIZQWZNvWjV2O6F/blobs/j0mNCG7zXXjzP57MNEU6/servicenow_1.png)
* Under **Advanced**, check the box **Advanced** to open the script editor.
* In the Script section, add the following code:

  * Note that `AppmixerNotifications` should be the same as the name of the Outbound REST Message in the previous step.

  ```js
  function serializeGlideRecordToJSON(gr) {
      const obj = {};
      const fields = gr.getFields();

      for (let i = 0; i < fields.size(); i++) {
          const field = fields.get(i);
          const fieldName = field.getName();

          // skipping sys_id and other sensitive fields if necessary
          if (fieldName !== 'sys_id' && fieldName !== 'sys_updated_on' && fieldName !== 'sys_created_on') {
              obj[fieldName] = gr.getValue(fieldName);
          }
      }

      return obj;
  }

  if (current.operation() === 'insert') {

      const rq = new sn_ws.RESTMessageV2('AppmixerNotifications', 'events');
      const requestBody = {
          'type': 'incident.insert',
          'data': serializeGlideRecordToJSON(current)
      };

      rq.setRequestBody(JSON.stringify(requestBody));
      rq.execute();
  }

  ```

  The code above handles only new records in the `incidents` table. If you want to track new items in other tables, create another business rules and send the notifications to the Appmixer endpoint, where the `type` of the event is in format like: '.insert':

  ```js
  const rq = new sn_ws.RESTMessageV2('AppmixerNotifications', 'events');
  const requestBody = {
      'type': 'tasks.insert',
      'data': serializeGlideRecordToJSON(current)
  };

  rq.setRequestBody(JSON.stringify(requestBody));
  rq.execute();
  ```
